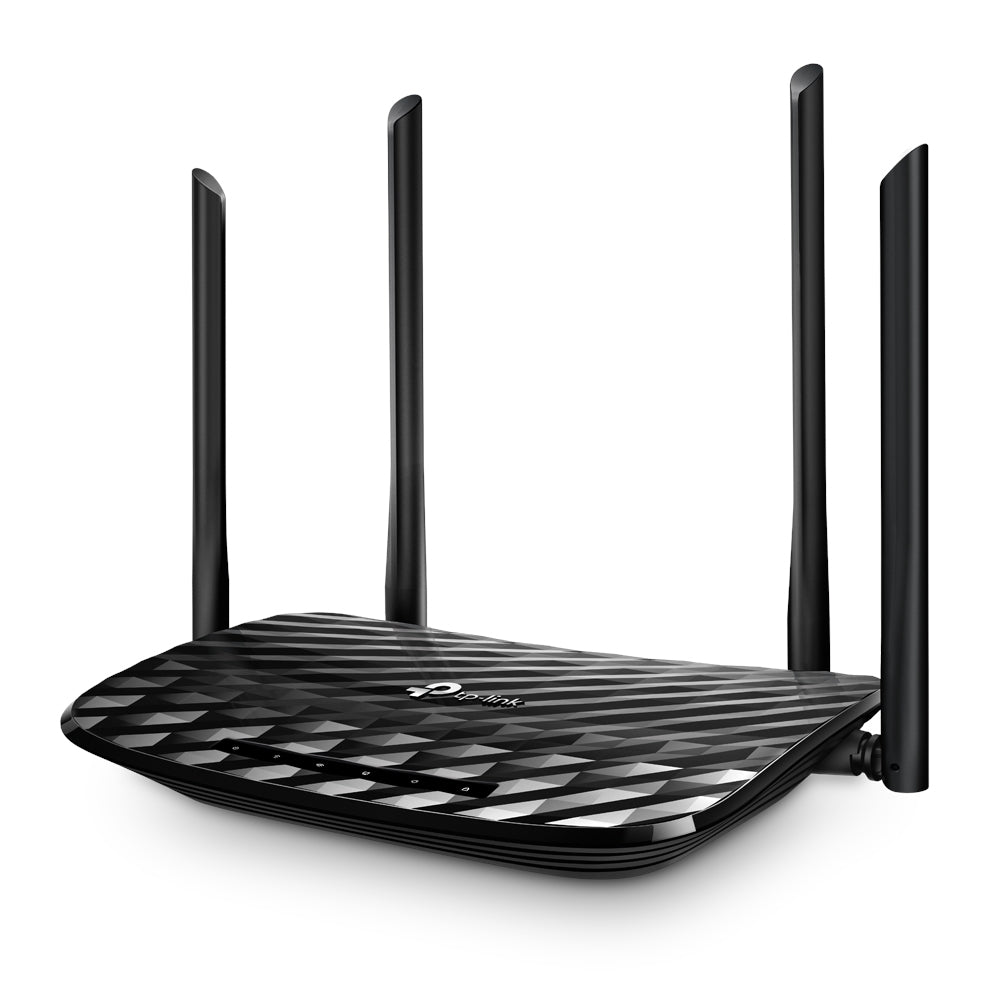

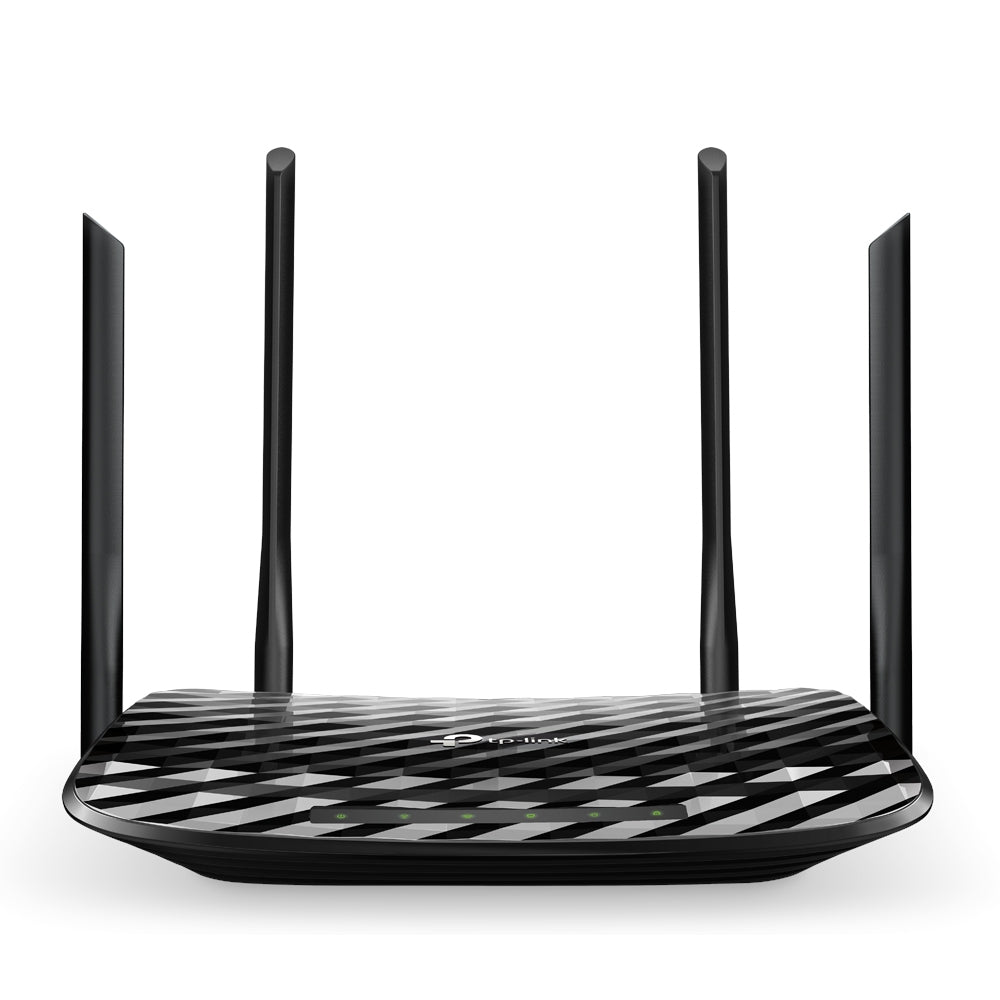

AC1200 Wireless MU-MIMO Gigabit Router
- Supports 802.11ac standard
- Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth*

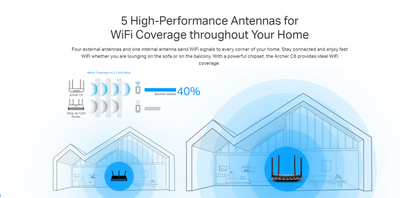

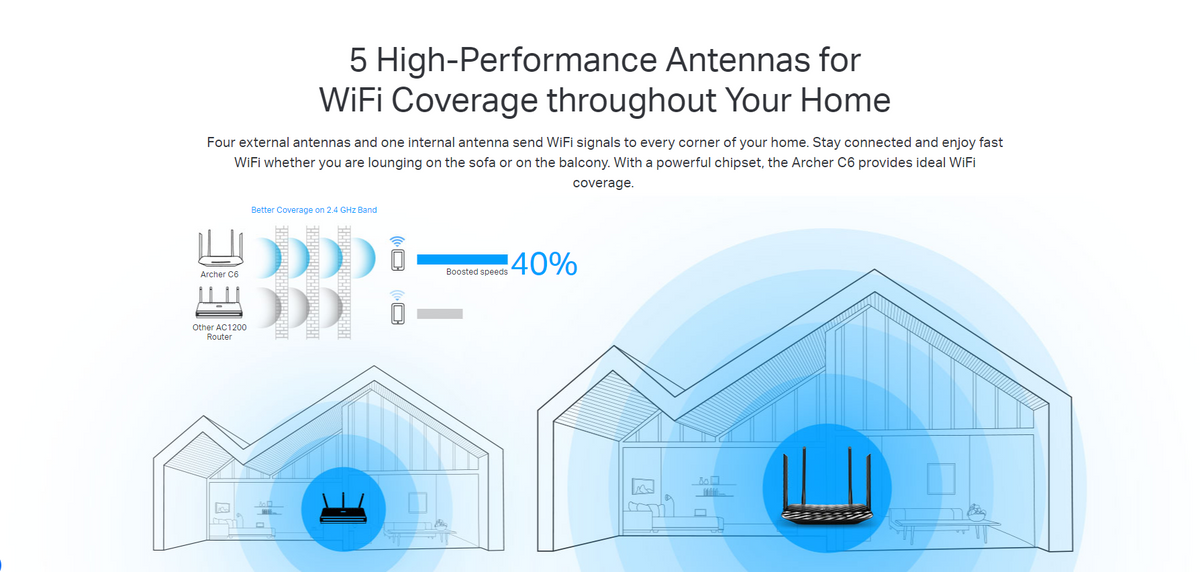

- 4 external antennas and one internal antenna provide stable wireless connections and optimal coverage*
- Easy network management at your fingertips with the TP-Link Tether app

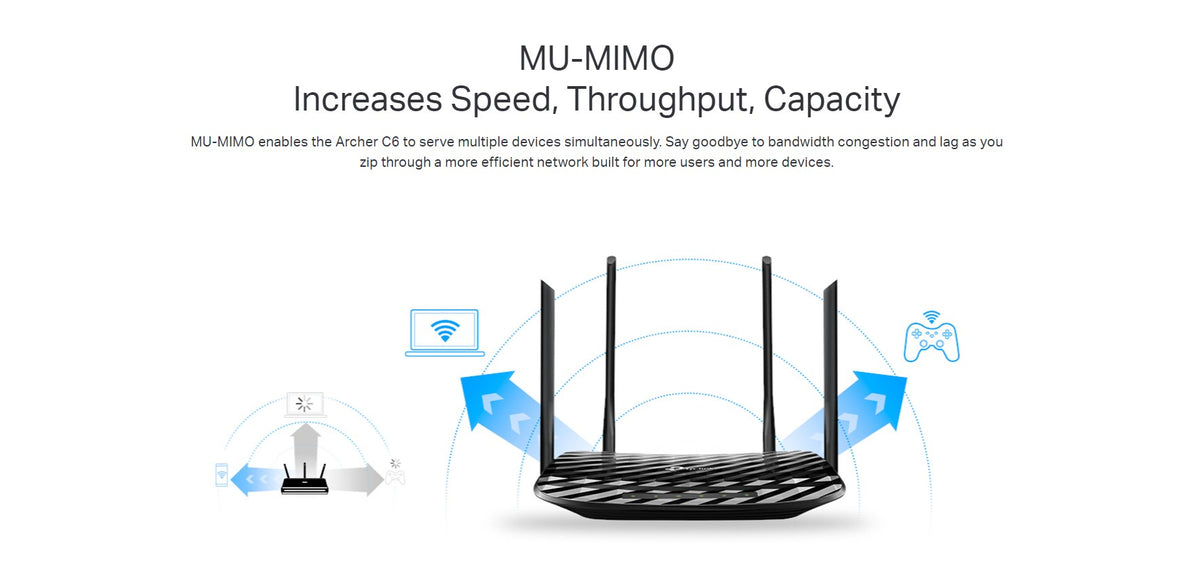

- MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once**
- Beamforming technology concentrates signal to your devices

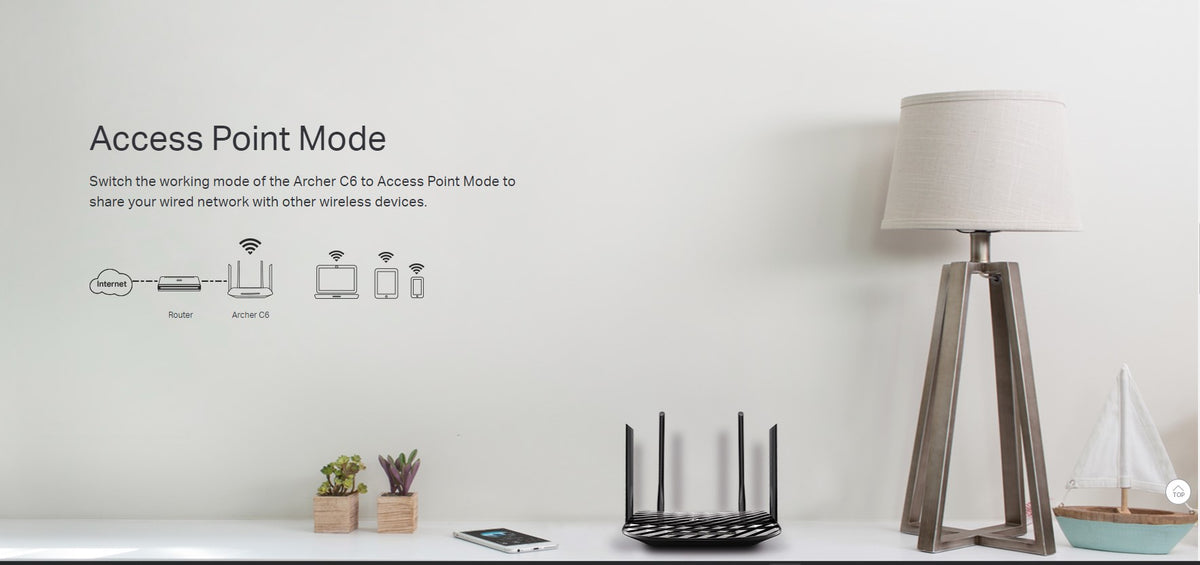

- Supports Access Point mode to create a new WiFi access point
- Standards : Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
- WiFi Speeds : AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n)
- WiFi Range : 3 Bedroom Houses
4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas
- Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
- WiFi Capacity : Medium
- Working Modes : Router Mode Access Point Mode
- Network Security : SPI Firewall Access Control IP & MAC Binding Application Layer Gateway
- Guest Network : 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
- WiFi Encryption : WPA WPA2 WPA3
- Processor 1.2 GHz CPU

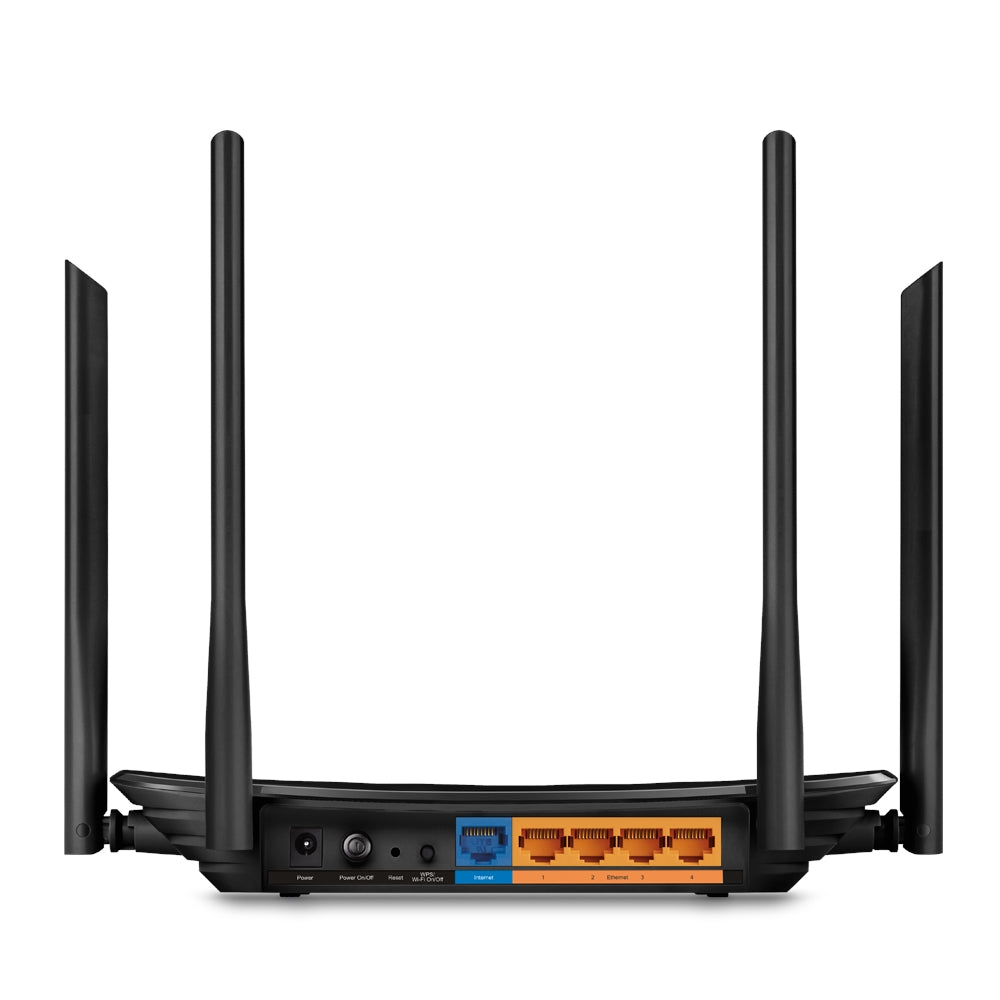

- Ethernet Ports Ethernet Ports
- Buttons : WPS/Wi-Fi Button Power On/Off Button Reset Button
- Power : 12 V ⎓ 1 A
- Protocols : IPv4 IPv6
- OneMesh™ : OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
- Parental Controls : URL Filtering Time Controls
- WAN Types : Dynamic IP Static IP PPPoE PPTP L2TP
- Quality of Service : QoS by Device
- Cloud Service : OTA Firmware Upgrade TP-Link ID DDNS
- NAT Forwarding : Port Forwarding Port Triggering DMZ UPnP
- IPTV : IGMP Proxy IGMP Snooping Bridge Tag VLAN
- DHCP : Address Reservation DHCP Client List Server
- DDNS : TP-Link NO-IP DynDNS
- Management : Tether App Webpage
- System Requirements : Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
- Certifications : FCC, RoHS
- Environment : Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
- WiFi Transmission Power : FCC: <30dBm(2.4GHz & 5GHz)
- WiFi Reception Sensitivity : 5GHz: 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm； 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm；
- Dimensions (W×D×H) : 8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm)

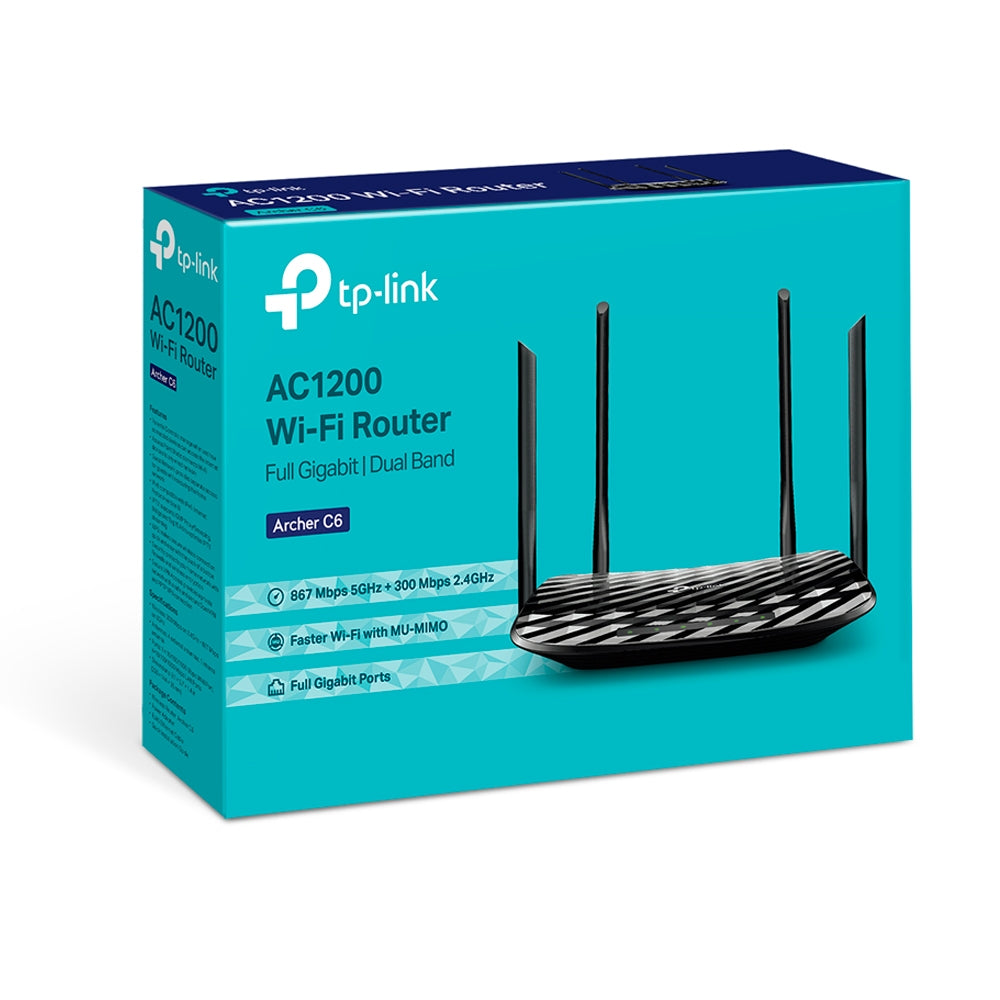

- Package Contents : Wi-Fi Router Archer C6 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
