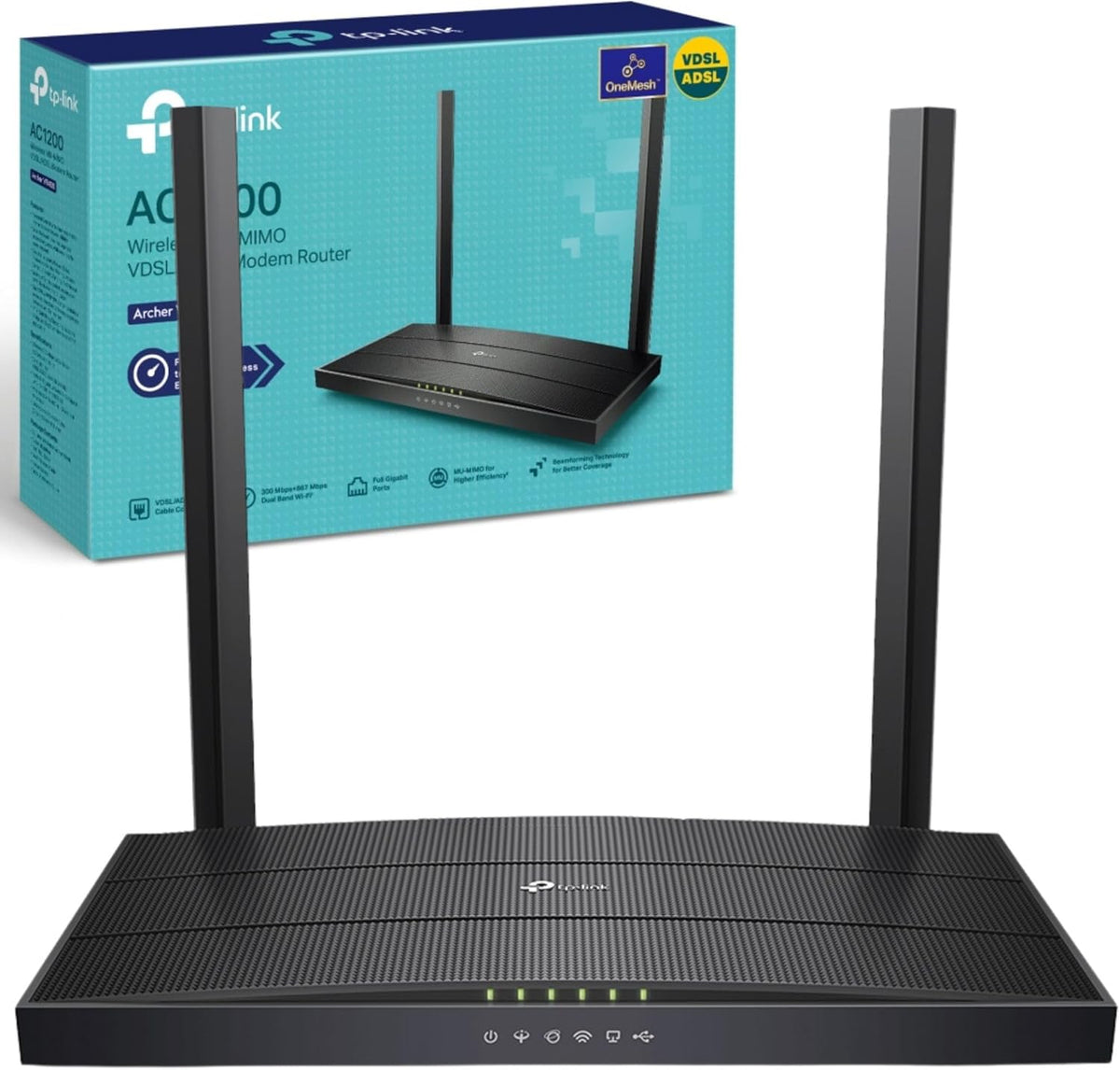

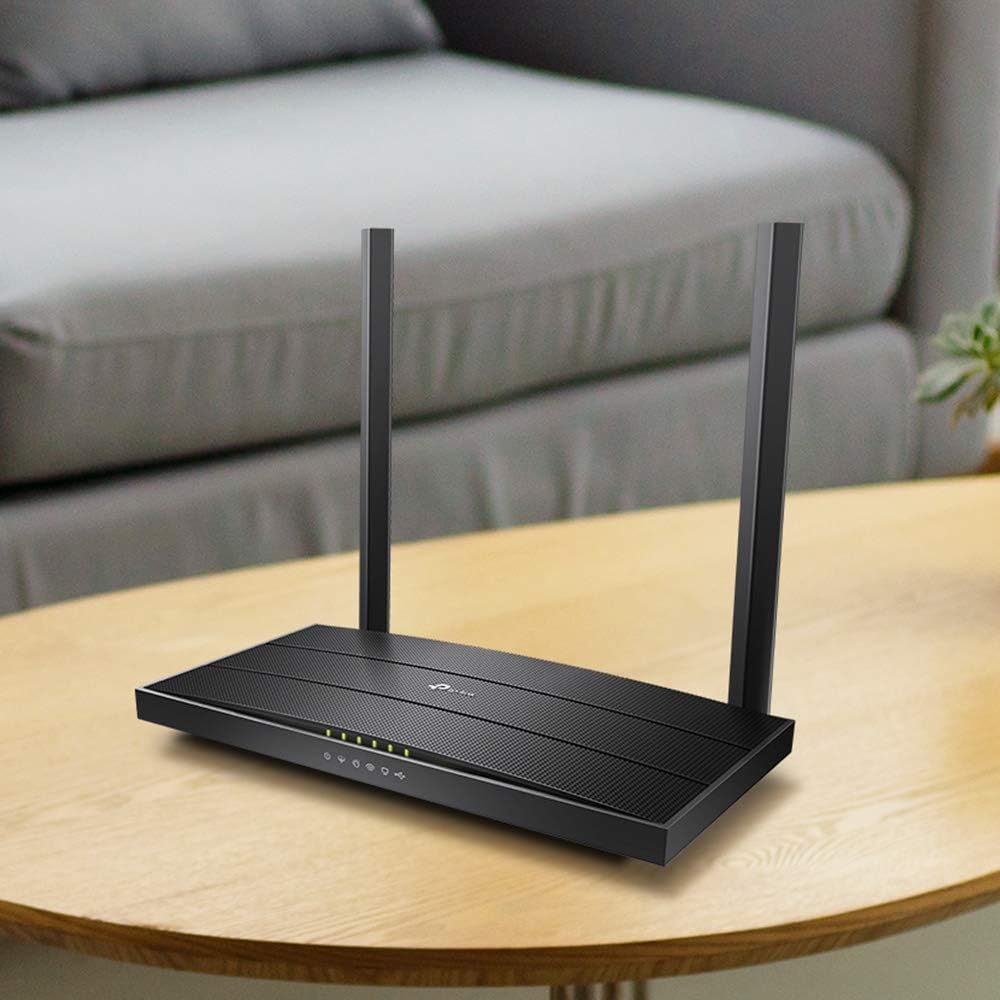

TP-Link Archer VR400 AC1200 Wireless Modem Router, VDSL ADSL Wifi Router, Mesh Wifi Booster, Dual Band Internet Booster, Full Gigabit Ethernet Ports Mesh Routers, Plug and Play, Gaming Xbox PS4 Steam
Speedy WiFi – Experience superb wireless connections with 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz) dual band WiFi
Superior Range – Two fixed omnidirectional antennas with Beamforming technology provide stable wireless connections and optimal coverage
Versatile Connectivity – Fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, as well as fiber, cable, and 3G/4G internet services
Whole-Home Coverage with OneMeshTM – Works alongside TP-Link OneMeshTM products to create a flexible Mesh network
MU-MIMO Technology – Simultaneously transfers data to multiple devices, reducing wait times
Full Gigabit Ports – Take full advantage of broadband speeds up to 1 Gbps
Tether App– TP-Link Tether provides the easiest way to access and manage your router on your iOS and Android devices

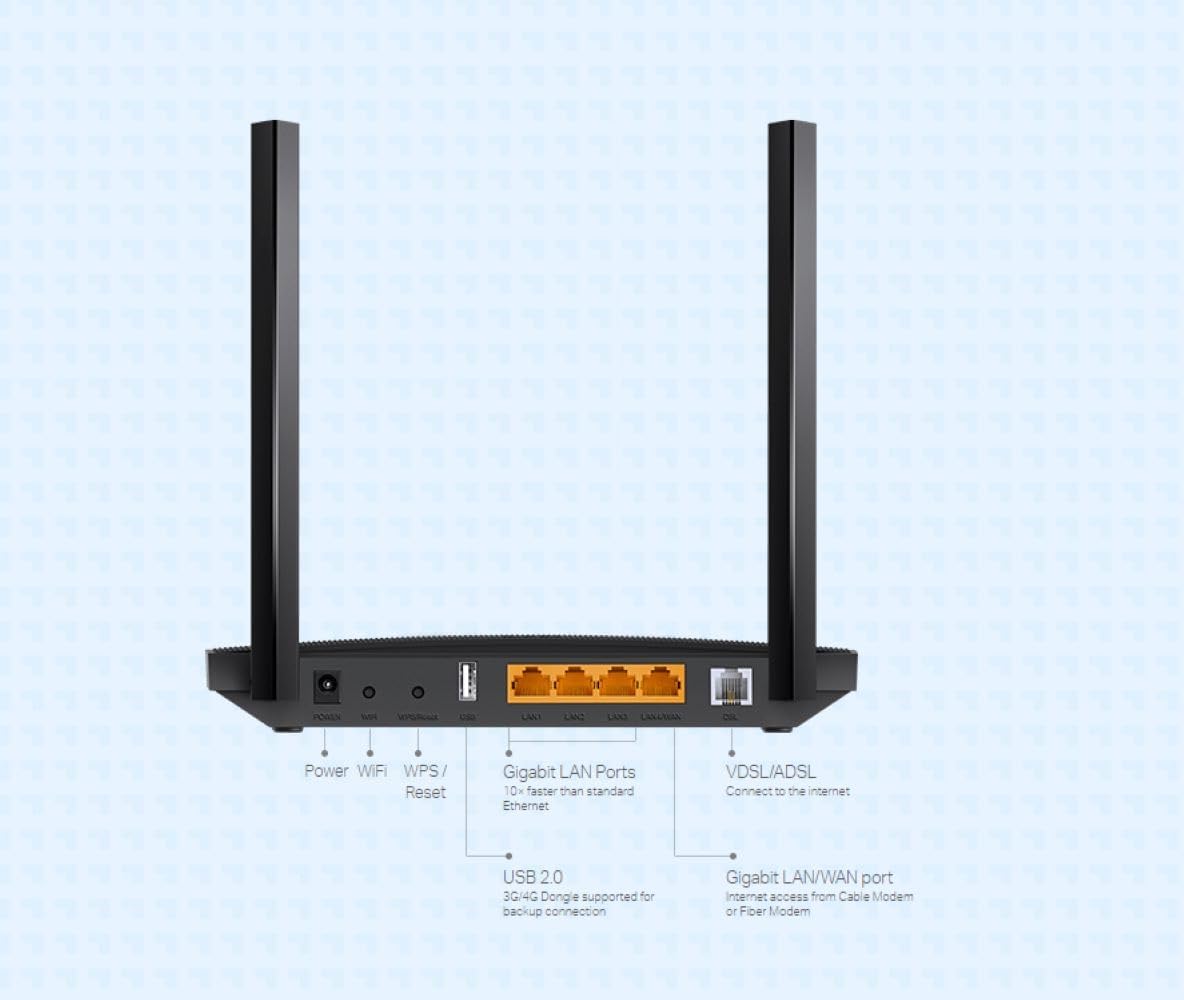

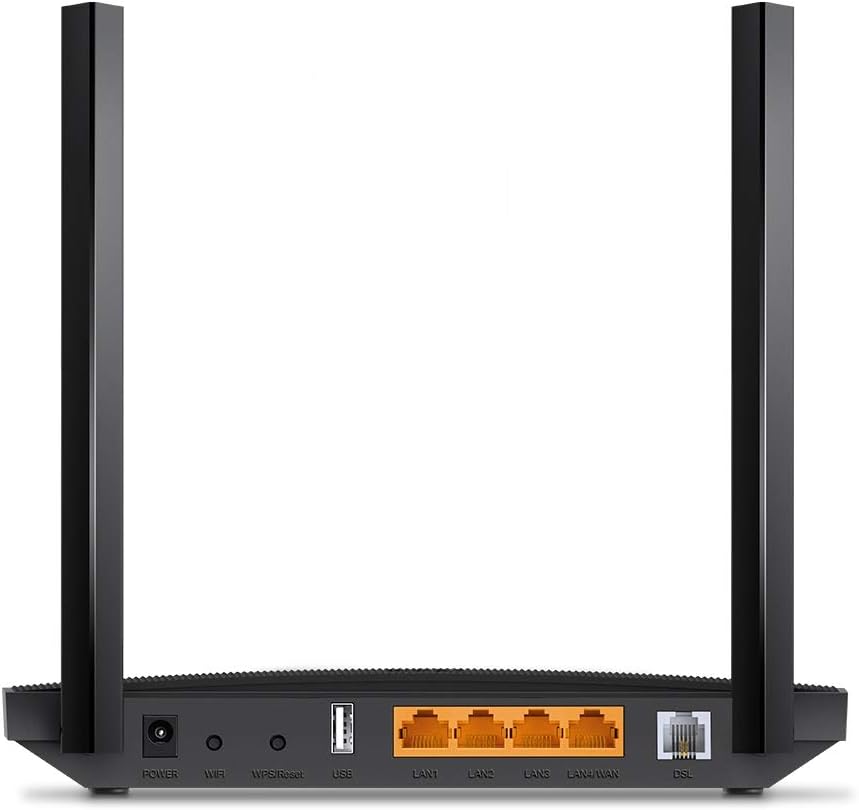

Interface 3× 10/100/1000Mbps RJ45 LAN Ports,
1× 10/100/1000Mbps RJ45 WAN/LAN Port,
1× RJ11 Port,
1× USB 2.0 Port
Button WPS Button, Wi-Fi On/Off Button, Reset Button
External Power Supply 12V/1A
IEEE Standards IEEE 802.3, IEEE 802.3u, 802.3ab

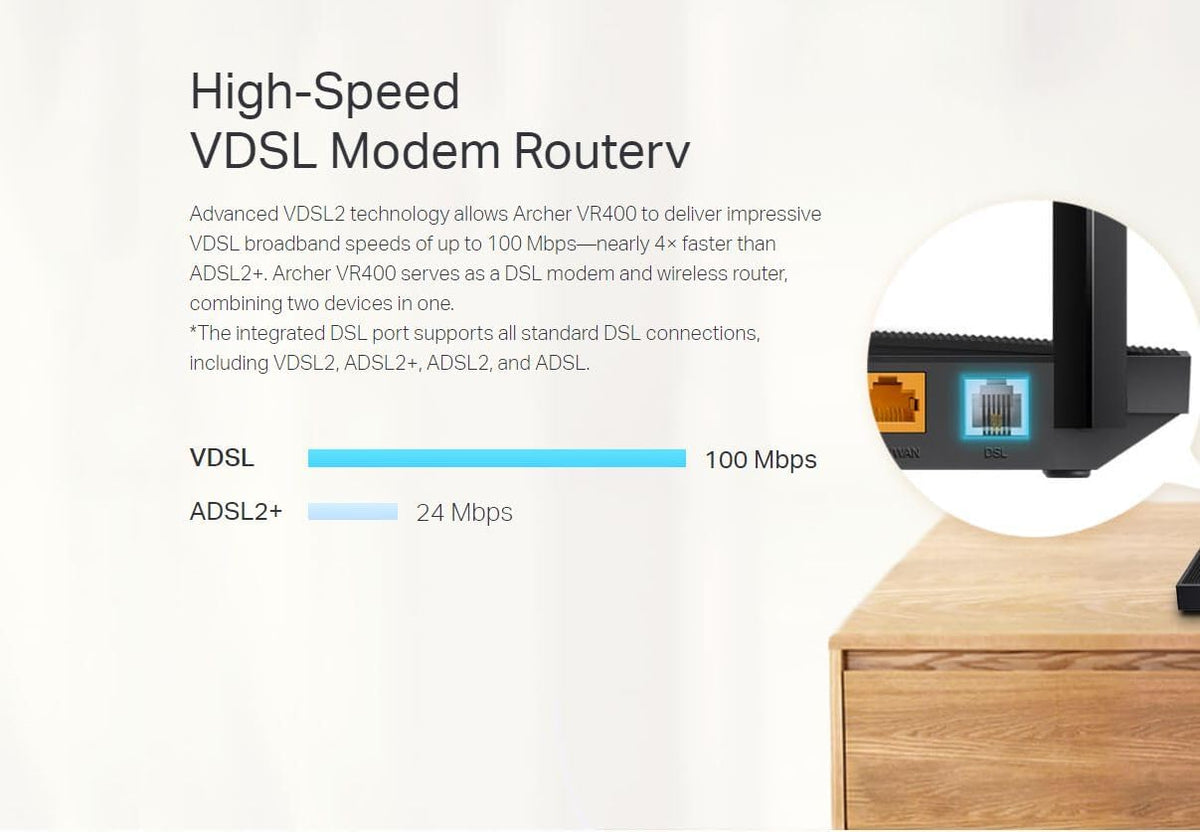

VDSL2 Standards ITU G.993.2, Up to 17a profile (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
ADSL Standards Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ADSL2 Standards ITU-T G.992.3 (G.DMT.bis)
ADSL2+ Standards ITU-T G.992.5

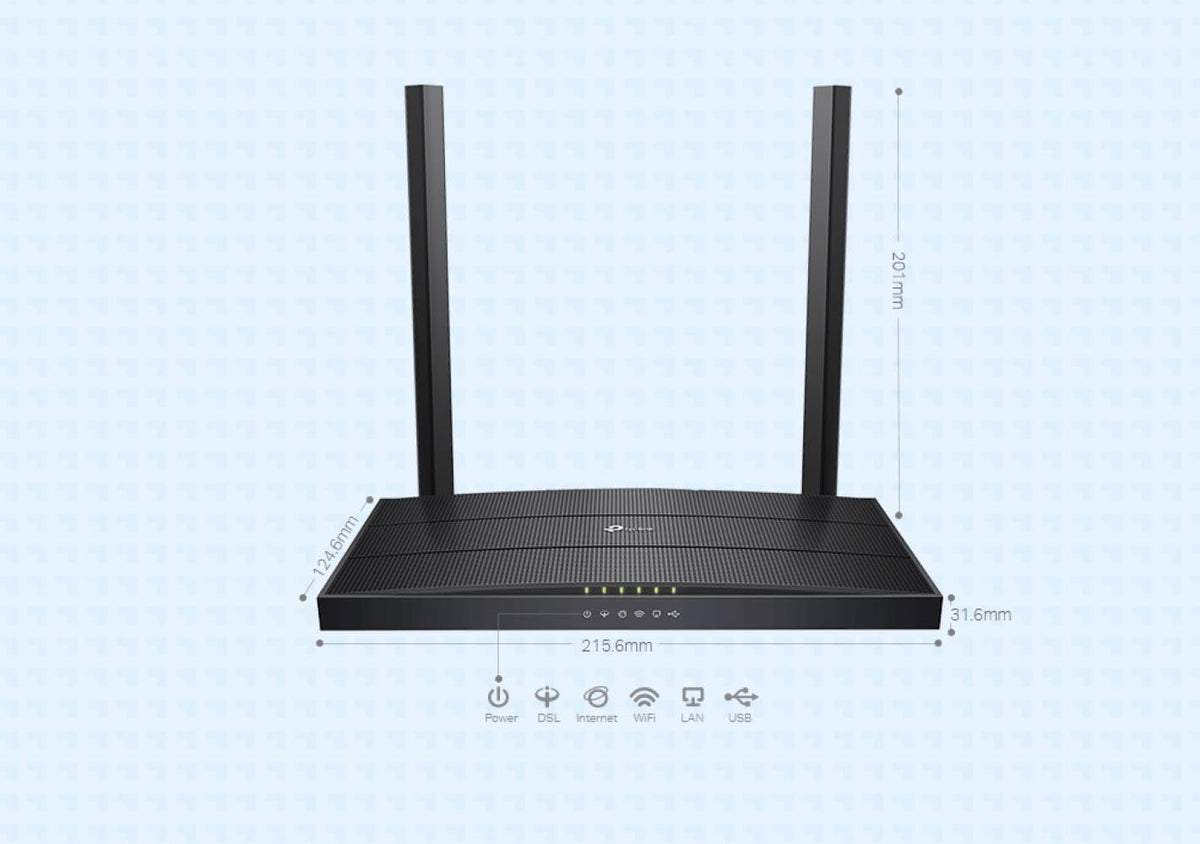

Dimensions ( W x D x H ) 8.5 × 4.9 × 1.2 in (215.6 × 124.6 × 31.6 mm)
Antenna 2× fixed Omini-Directional antennas
Advanced Features Parental Controls, Network Address Translation(NAT), Port Mapping
(Grouping), Static Routing, DDNS, IGMP V1/V2/V3
Security NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
Operating Modes VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router
Management Features Web-Based Configuration (HTTP / HTTPS ), Remote management,
Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update
DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS DynDns, NO-IP, TP-Link
VPN OpenVPN, PPTP VPN, IPSec VPN
Protocols Supports IPv4 and IPv6
ATM/PPP Protocols ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Guest Network 2.4GHz Guest Network, 5GHz Guest Network
Certification CE, RCM, RoHS
Package Content AC1200 Wireless MU-MIMO VDSL/ADSL Modem Router Archer VR400
External Splitter
RJ11 DSL Cable
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, macOS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Subscription with an internet service provider (for internet access)
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
